Revopoint
Revopoint Trackit SR
- Item Id 35074
- Variation ID 21467
- EAN 6975577882141
- Mfg part No, TRACKIT-SR-CMM-EDITION
read more
Incl. VAT
excl.
Shipping
in Stock:
0
Date not confirmed
Product description
Technical specifications
Technical Specifications – Revopoint Trackit SR
| Specification | 3D Scanner | Tracker |
|---|---|---|
| Single-frame Accuracy | 0.02 mm | – |
| Fused Point Distance | Up to 0.05 mm | – |
| Scanning Speed | Up to 1,500,000 points/s | – |
| Light Source | 30 blue cross laser lines 1 blue single laser line | Infrared tracking band |
| Working Distance | 200–400 mm | 1500–4000 mm |
| Single Capture Area at Nearest Distance | 160 × 70 mm @ 200 mm | – |
| Single Capture Area at Furthest Distance | 320 × 215 mm @ 400 mm | – |
| Recommended Part Size Range | 0.01–6 m | – |
| Volumetric Accuracy | – | 0.02 mm + 0.04 mm × L (m) |
| Minimum Tracking Frame | – | 1304 × 1067 mm @ 1500 mm |
| Maximum Tracking Frame | – | 3260 × 2845 mm @ 4000 mm |
| Tracking Volume | – | 11 m³ |
| Weight | 1.2 kg | 2.0 kg |
| Dimensions (L × W × H) | 295 × 295 × 205 mm | 686 × 106 × 111 mm |
| Operating Temperature Range | 0–40 °C | 0–40 °C |
| Material | Frame: Carbon Fiber Housing: Polycarbonate | – |
| Output Formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX | – |
| Calibration | Manual calibration | Auto Calibration via Auto Gimbal Calibration System |

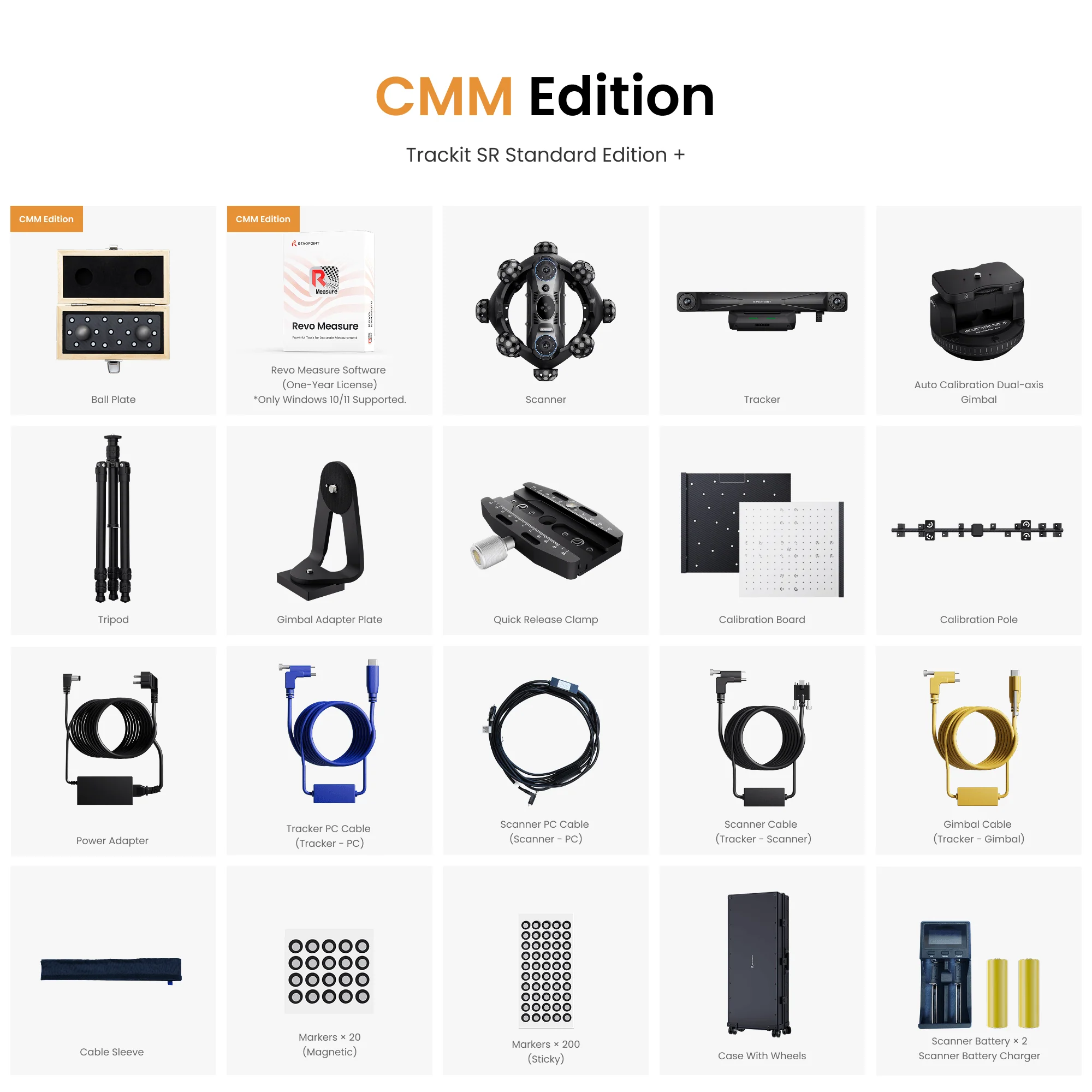

| Supported Accessories | Calibration Board, Calibration Pole, Auto Calibration Dual-axis Gimbal, Anchor Block, Large Turntable | |
Notes
- ① Accuracy was measured in a controlled laboratory environment. Actual results may vary depending on the operating environment and conditions.
- ② The product uses a Class 1 laser projector. Avoid looking directly into the laser beam at close range. Do not use optical instruments that magnify the laser beam, such as telescopes or camera lenses. Avoid placing reflective surfaces such as mirrors or glass in the laser path.
- ③ To ensure the highest accuracy, it is recommended to use the product in an ambient temperature range of 20–25 °C (68–77 °F).
- ④ This product contains flashing lights that may not be suitable for people with photosensitive epilepsy.
