SHINING 3D EinScan Trak
SHINING 3D EinScan Trak
SHINING 3D EinScan Trak
SHINING 3D EinScan Trak
SHINING 3D EinScan Trak
SHINING 3D EinScan Trak
SHINING 3D EinScan Trak
SHINING 3D EinScan Trak
*Product Images and Videos are for Illustrative Purposes Only.
Product videos
SHINING 3D

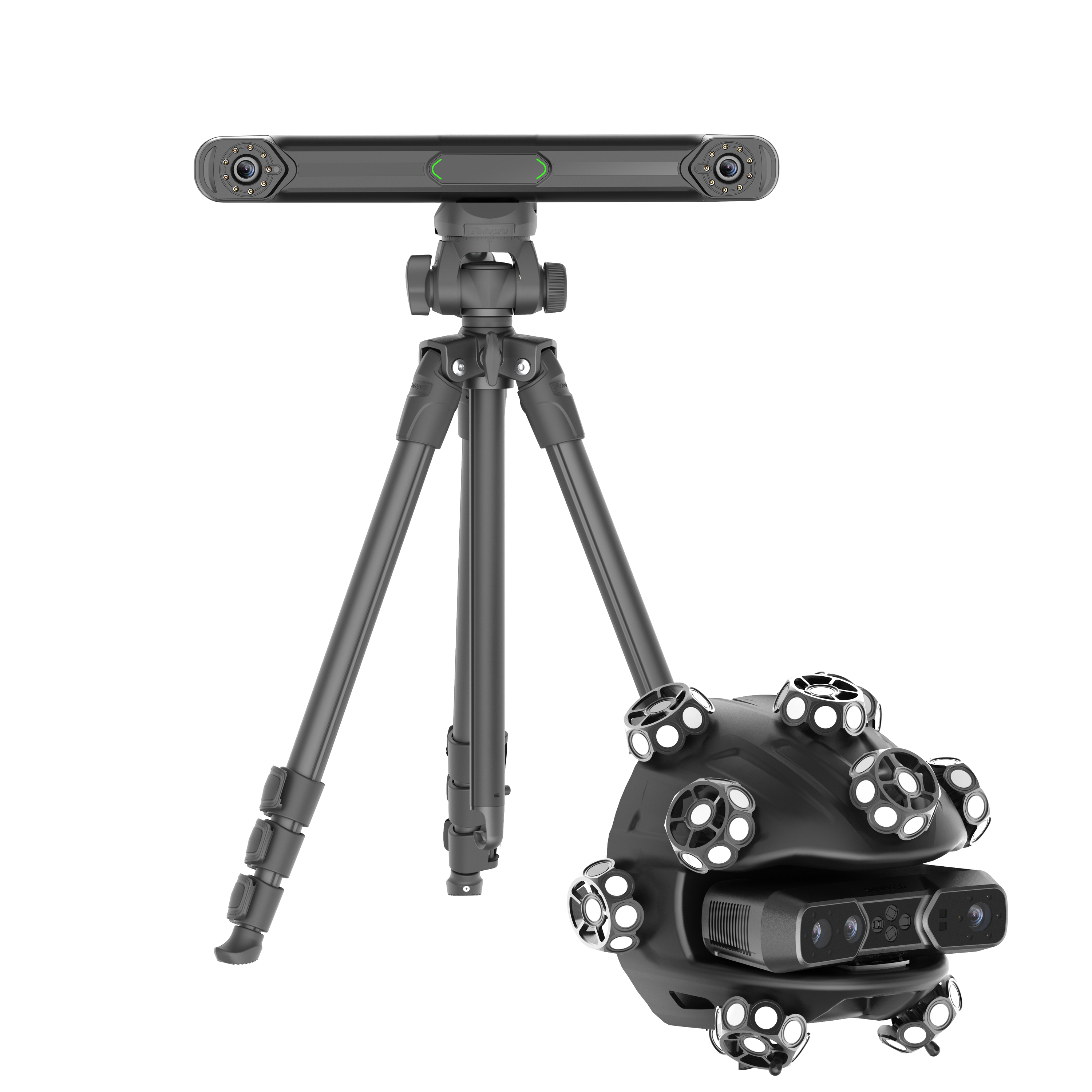

SHINING 3D EinScan Trak

  • Item Id 35206
  • Variation ID 21772
  • EAN 6942799000547
  • Mfg part No, S1.31.25.1.2010
read more

Incl. VAT excl. Shipping
in Stock:  0
Upon request
Wish list
Questions about the product
Manufacturer & Safety Contacts
if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn03.plentyone.com/ioseuwg7moqp/plugin/223/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "9DPYYFXQTNKNQ"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 0); script.setAttribute("applePayComponent", 0); script.setAttribute("logToken", "4614ee2fea8d0262a6d41b473db5cd8f"); document.body.appendChild(script); } else { var script = document.getElementById('paypal-smart-payment-script'); script.src = "https://cdn03.plentyone.com/ioseuwg7moqp/plugin/223/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "9DPYYFXQTNKNQ"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 0); script.setAttribute("applePayComponent", 0); script.setAttribute("logToken", "4614ee2fea8d0262a6d41b473db5cd8f"); }
Product description

Technical Specifications

Working ModeTracking Mode / Handheld Scanner Mode
Scanning TechnologyLaser
Laser Modes19+19 crossed laser lines / 7 parallel laser lines / single laser line
Resolution0.05–10 mm
Volumetric AccuracyUp to 0.1 mm
Scanning SpeedUp to 2,630,000 points/s
Tracking Distance800–4000 mm
Working Distance, Handheld Scanner100–500 mm
Tracking Volume15 m³
Maximum Field of View, Tracking4796 × 4174 mm at 4000 mm
Maximum Field of View, Handheld547 × 463 mm at 500 mm

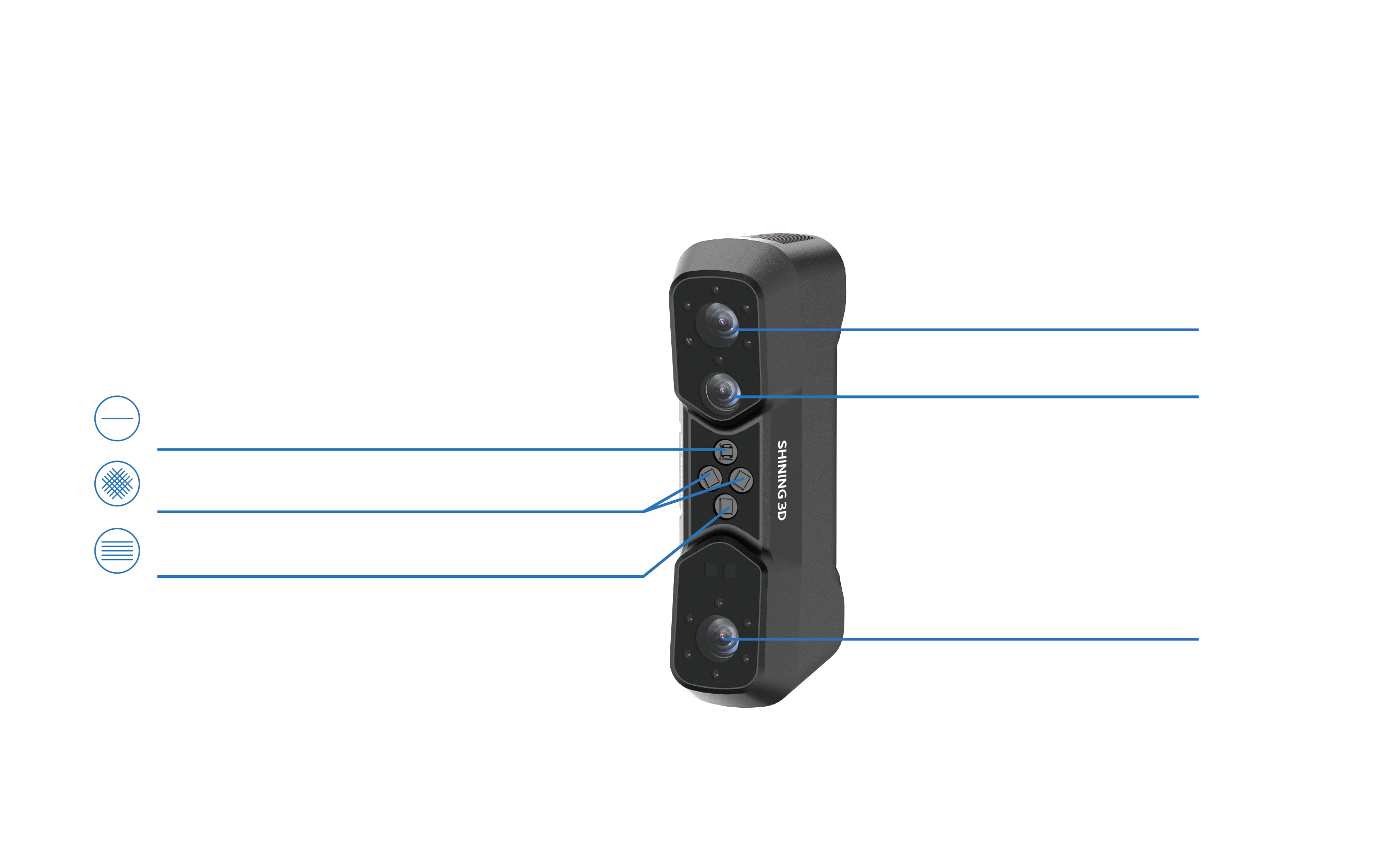

CamerasTracker: 2 × 5 MP cameras; Scanner: 2 × 2 MP depth cameras + 5 MP texture camera
Output FormatsSTL, OBJ, PLY, 3MF, ASC
Battery Life, TrackerUp to 5.5 hours
Battery Life, Handheld ScannerUp to 3.5 hours
Number of Batteries4 included as standard
Battery, Dimensions82.1 × 28.3 × 26.4 mm
Battery, Weight110 g

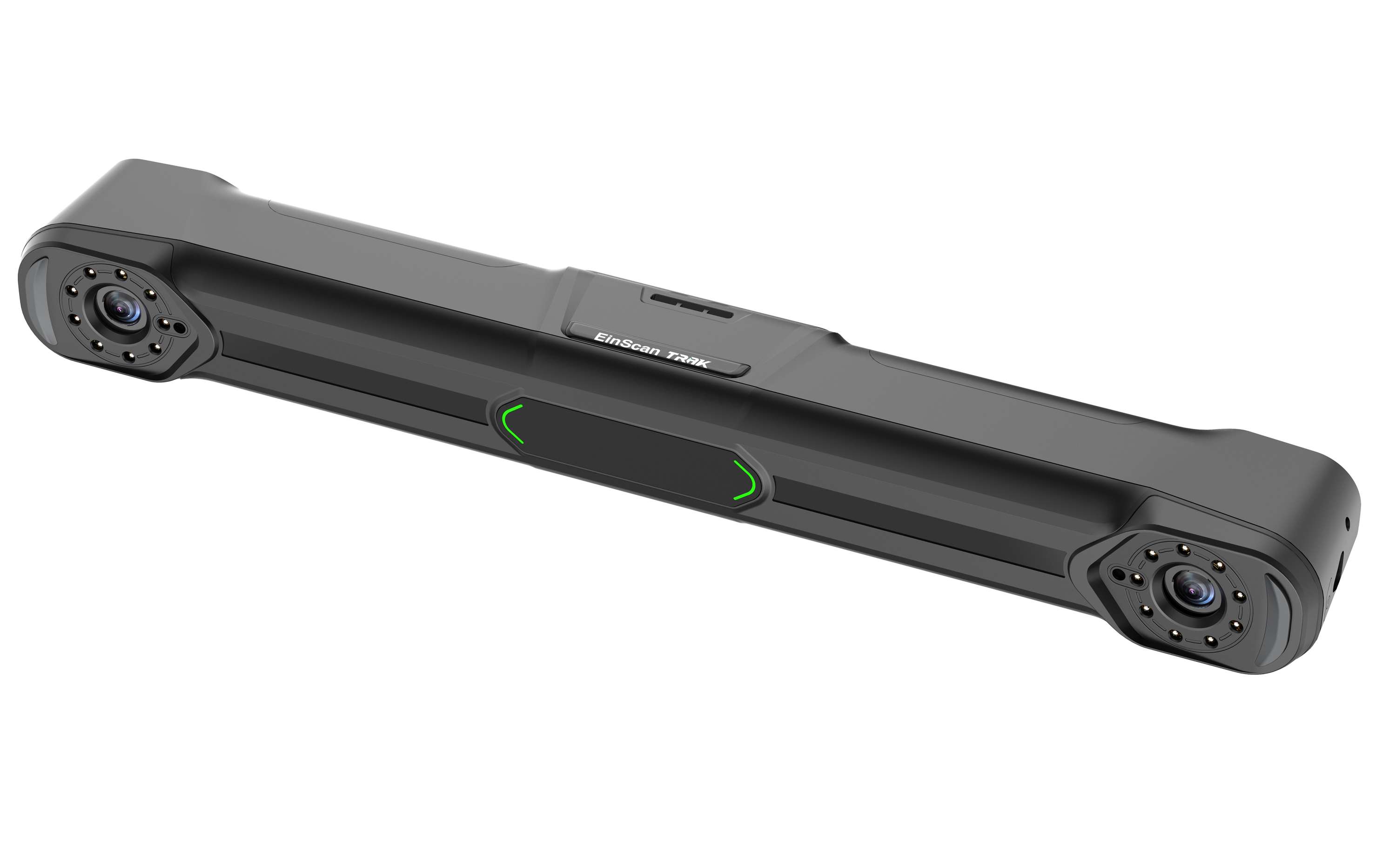

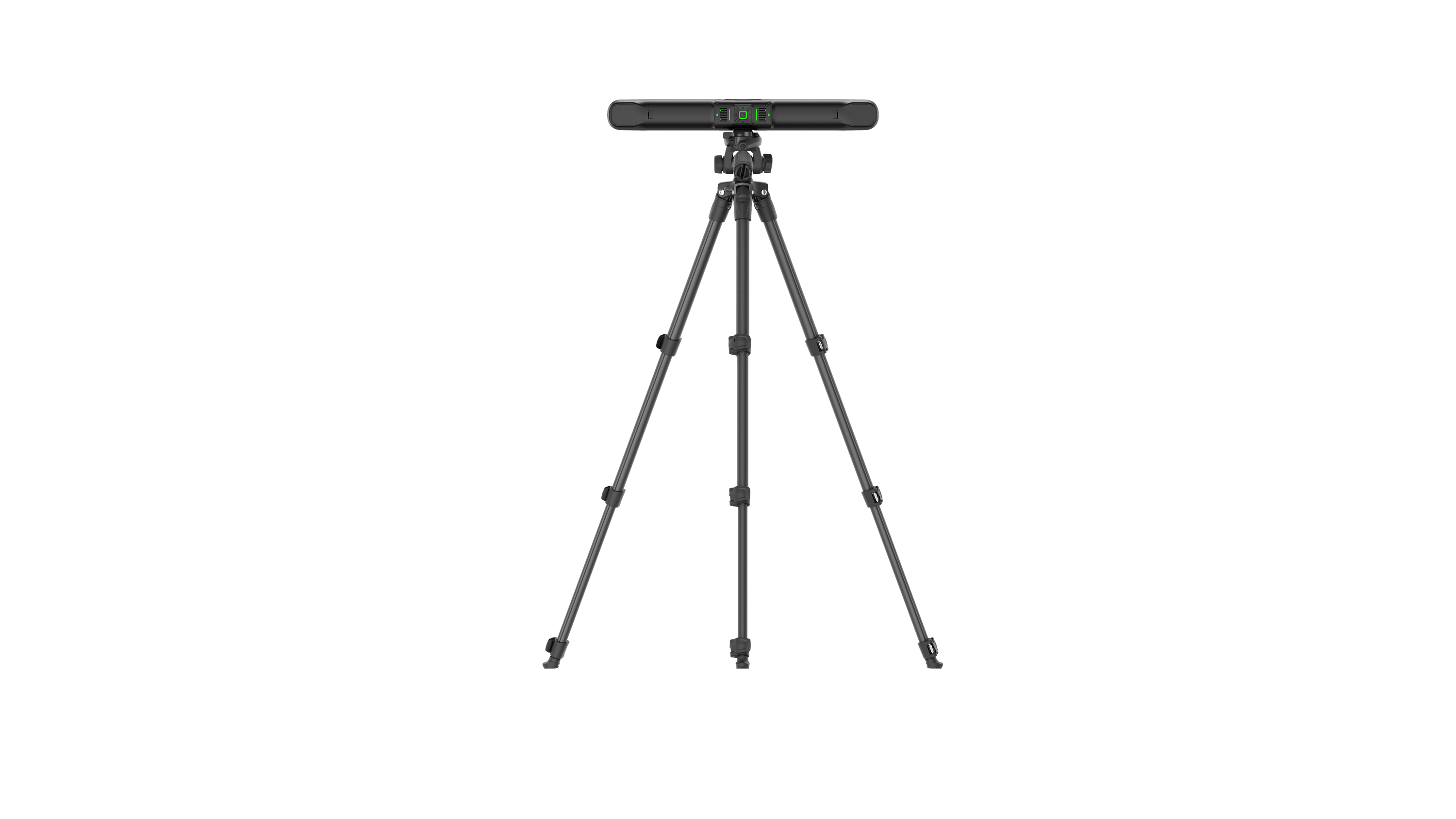

Tracker, Dimensions462 × 68 × 54 mm
Tracker, Weight1.02 kg

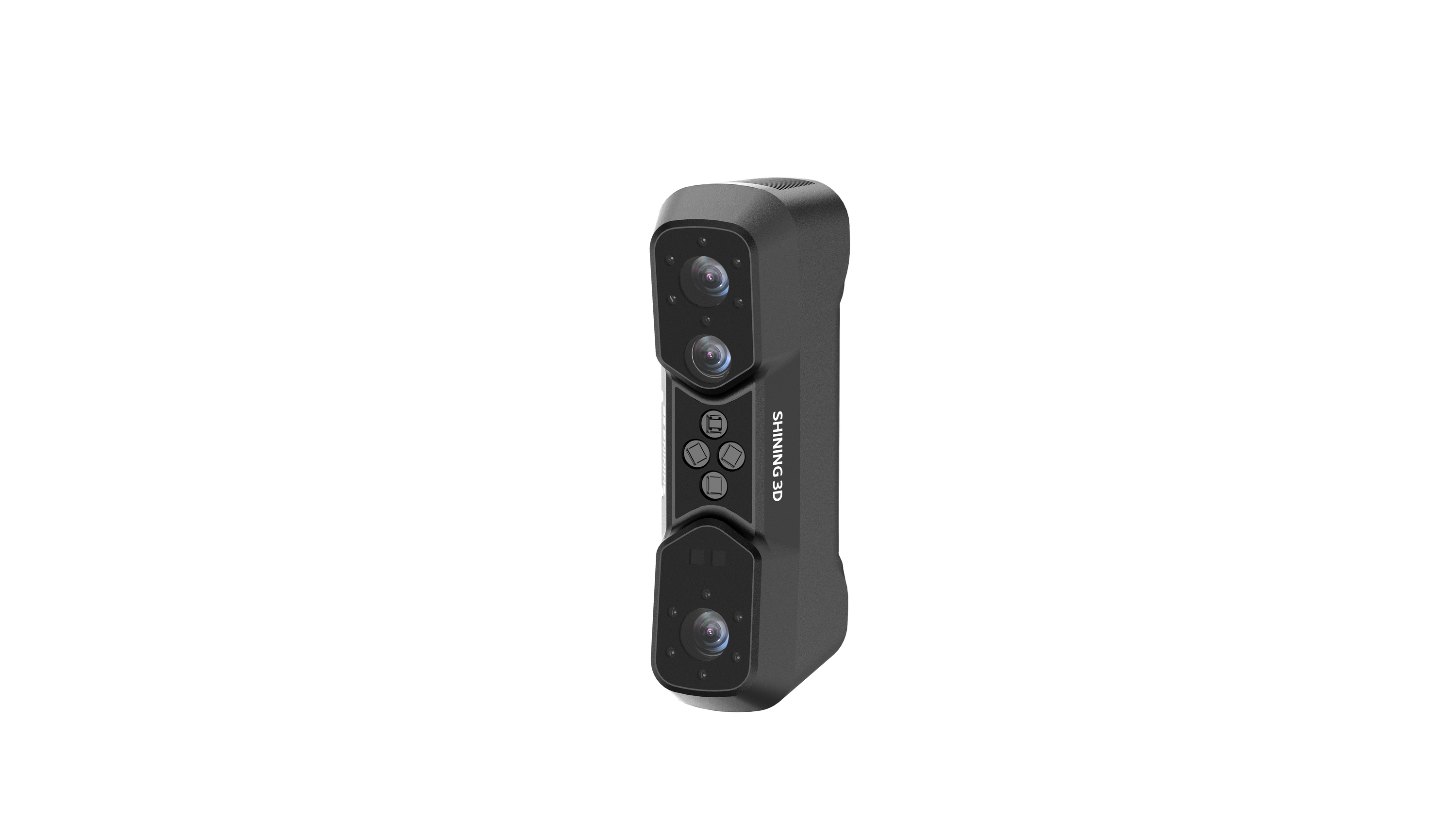

Handheld Scanner, Dimensions199 × 193 × 172 mm
Handheld Scanner, Weight0.48 kg

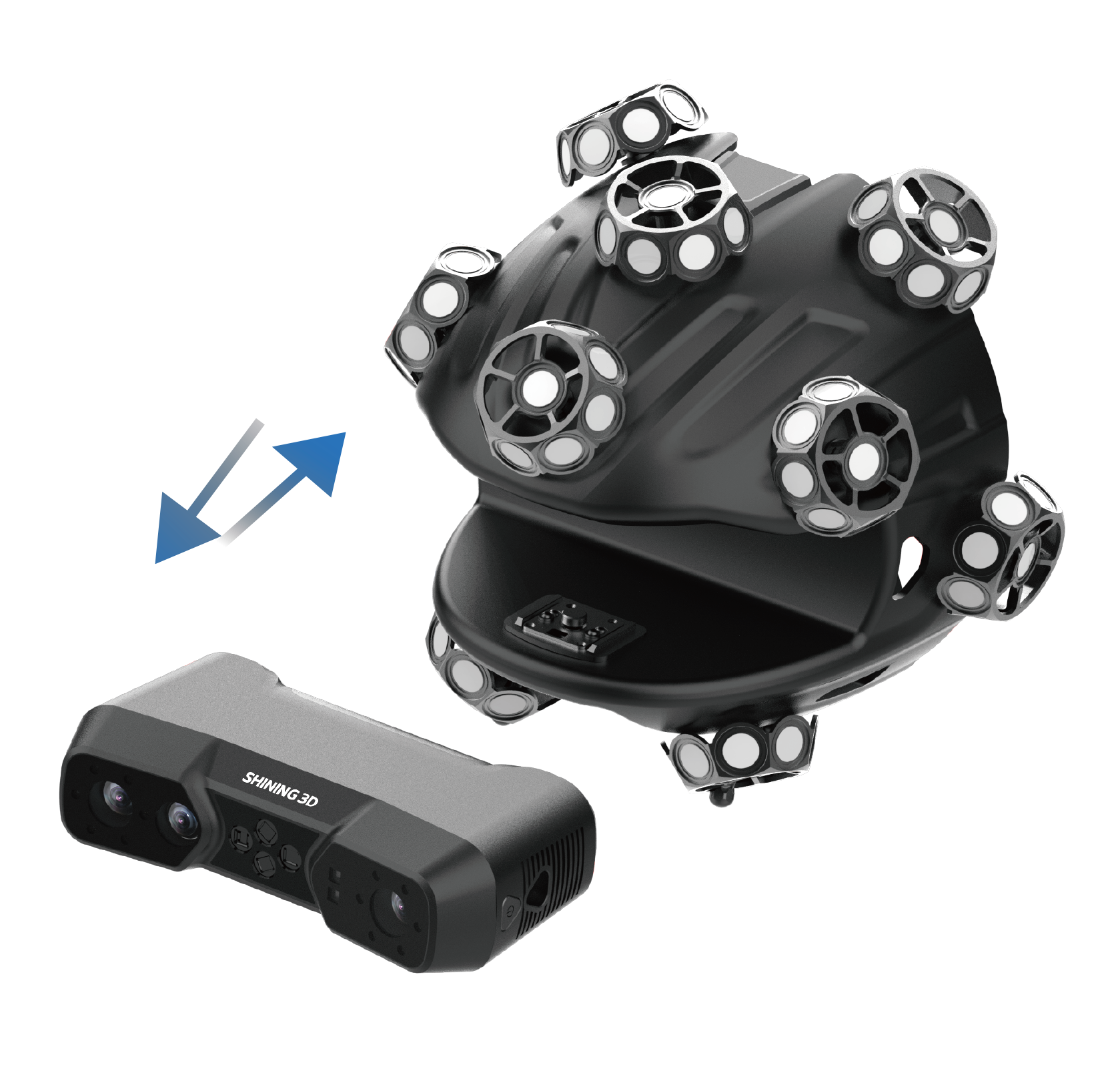

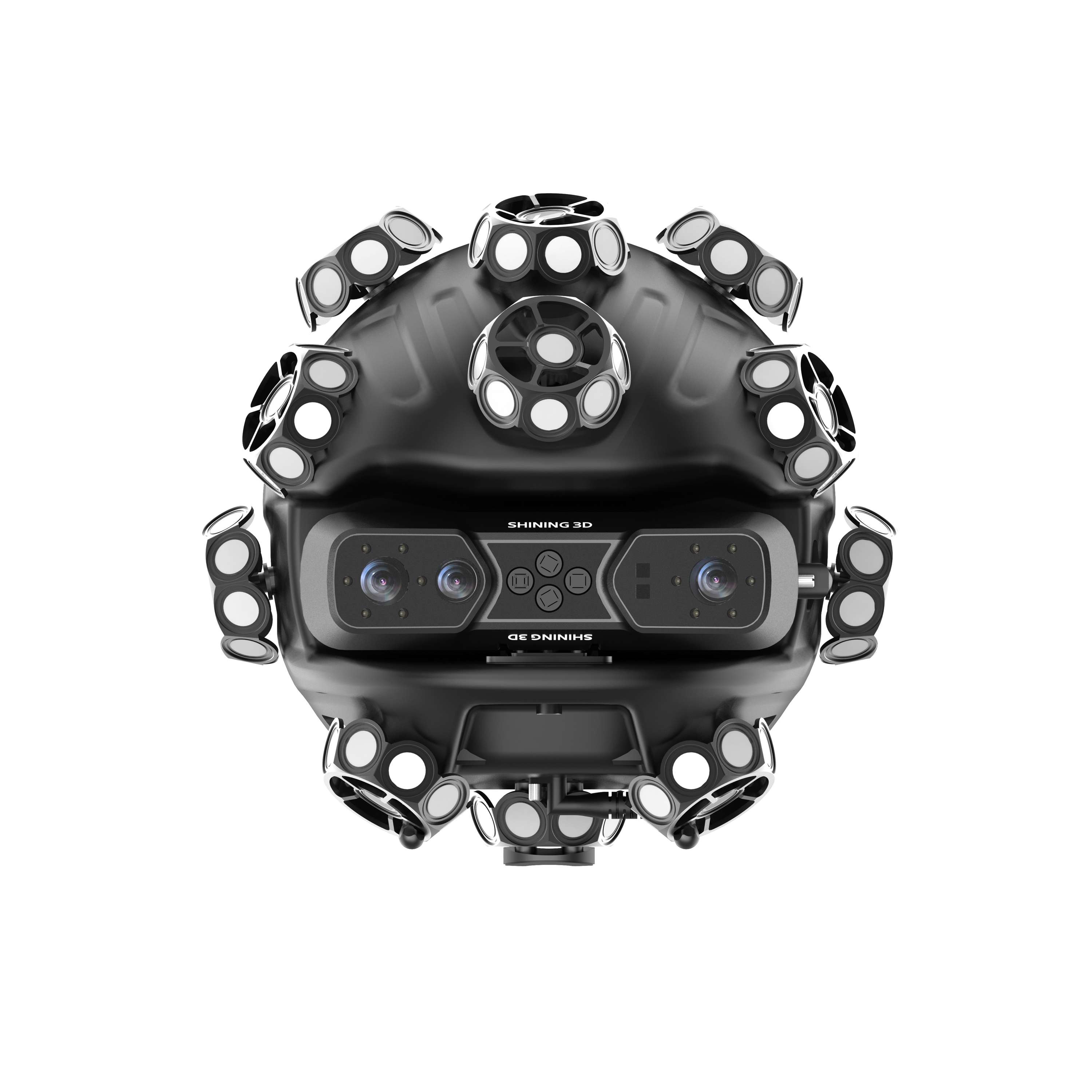

Spherical Scanner Configuration, Dimensions244 × 186 × 238 mm
Spherical Scanner Configuration, Weight1.46 kg
Operating Temperature−10 °C to 40 °C
Laser ClassClass 2
ConnectivityUSB Type-C / LAN / Wi-Fi 6

PC Requirements: Windows 10/11 64-bit, NVIDIA GeForce RTX 3060 or better with at least 6 GB VRAM, at least 32 GB RAM, USB 3.0, and LAN. Processor: 13th-generation Intel Core i7-13650HX or better, or AMD Ryzen 7 7735H with Radeon Graphics or better.

Datasheet
Product brochure
A 3D printer is a device that creates three-dimensional objects by building them layer by layer from digital designs. At 3D Prima, we offer high-quality 3D printers for both beginners and professionals.
We stock a wide range of printers including FDM/FFF printers for versatile everyday use, resin (SLA/DLP/LCD) printers for ultra-fine detail, and industrial-grade machines for high-volume production.
For new users, we recommend an easy-to-use FDM printer with simple setup, reliable performance, and strong community support.
Think about your printing needs: build volume, print quality, material compatibility, ease of use, and budget. Our team can help you find the perfect match.
Most open-material 3D printers allow you to use any compatible filament or resin, as long as it meets the printer’s specifications.
Yes. We provide advanced printers capable of printing engineering-grade materials like PEEK, PEKK, and carbon-fiber composites, ideal for demanding applications.
Basic maintenance includes cleaning the nozzle or resin vat, keeping the build plate level, updating firmware, and storing materials properly. Regular care ensures consistent print quality.
Absolutely. We provide full customer support, troubleshooting, spare parts, and upgrades for the 3D printers we sell.
